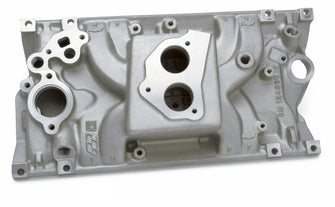

Intake Manifold - Vortec Head Design for TBI - 12496821
$633.73
$0.00( / )
Designed for throttle-body fuel injection|Aluminum intake will work with all Vortec cylinder heads, including P/N 12691728, P/N 19431662, P/N 19431663, P/N 19331470 and P/N 19331472|Also accepts EGR.
Features: Evenly distributes the combustion mixture to each intake port in the cylinder head(s)
Additional Attributes
Carburetor Or Fuel Injection:Fuel Injection
Carburetor Type:Throttle Body
CPP Compatible Transmission/Engine:19417619
Fuel Injection Type:TBI
Mount Hole Diameter (in ):0.4062in
Mount Hole Diameter (mm ):10.32mm
Mount Hole Quantity:8
Center Maximum Height:3.15;80.01
CNC Ported:Yes
Color:Gray
Gasket Or Seal Included:No
Grade Type:Regular
Length:20.12;511
Material:Aluminum
Mounting Hole Diameter:0.41;10.3
Mounting Hole Quantity:8
Single Or Dual Plane Type:Dual Plane
Width:10.24;260
Designed for throttle-body fuel injection|Aluminum intake will work with all Vortec cylinder heads, including P/N 12691728, P/N 19431662, P/N 19431663, P/N 19331470 and P/N 19331472|Also accepts EGR.
Features: Evenly distributes the combustion mixture to each intake port in the cylinder head(s)
Additional Attributes
Carburetor Or Fuel Injection:Fuel Injection
Carburetor Type:Throttle Body
CPP Compatible Transmission/Engine:19417619
Fuel Injection Type:TBI
Mount Hole Diameter (in ):0.4062in
Mount Hole Diameter (mm ):10.32mm
Mount Hole Quantity:8
Center Maximum Height:3.15;80.01
CNC Ported:Yes
Color:Gray
Gasket Or Seal Included:No
Grade Type:Regular
Length:20.12;511
Material:Aluminum
Mounting Hole Diameter:0.41;10.3
Mounting Hole Quantity:8
Single Or Dual Plane Type:Dual Plane
Width:10.24;260
| Type: | |
|---|---|
| Vendor: | |
| SKU: |
12496821 |
| Weight: |
24.5 lb |
