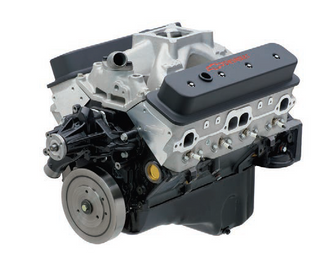

Chevy Small-Block V-8 SP383 Deluxe - 19433035

|
19433035
$10,224.08 $0.00( / )

Modern Technology Adds Range to the 383 Stroker!


Chevrolet Performance’s SP383 Deluxe uses LS-inspired valvetrain technology to expand its rpm range, matching the stroker combination’s traditional torque with more high-rpm horsepower. Lightweight aluminum cylinder heads based on the proven Fast Burn design are at the heart of the SP383’s performance capability.

They feature beehive-style valve springs to enable great high-rpm performance and durability, allowing the SP383 to rev higher and build more horsepower. The engine also features a forged steel stroker crankshaft, an aggressive hydraulic roller camshaft and a high-flow aluminum single-plane intake manifold. The Deluxe kit also includes a cast-iron water pump and steel balancer. The assembly includes a Holly 4-barrel carb, HEI distributor, ignition wires and spark plugs (not shown in product photo).


INSTALLATION NOTES


  • Requires addition of fuel pump and starter (not included)
  • 435 horsepower rating achieved during GM testing with the high-rise single-plane intake manifold (P/N 12496822) and a 770-cfm carburetor with vacuum secondaries (P/N 19420445)
  • Chevrolet Performance dual-plane intake manifold (P/N 12366573) may be used to avoid hood clearance problems, but peak power may decrease by approximately 15–20 horsepower
  • Comes with 12.750" externally balanced 153-tooth automatic transmission flexplate. Requires externally balanced flywheel for manual transmission.
  • Not intended for marine applications

Technical Specifications

Part Number: 19433035
Engine Type: Chevy Small-Block V-8
Displacement (cu in ): 383
Bore x Stroke (in ): 4.005 x 3.800
Block (P/N 19432109 ): Cast iron with 4-bolt main caps
Crankshaft (P/N 12489436 ): Forged steel
Connecting Rods (P/N 19355754 ): Heavy-duty forged steel
Pistons (P/N 12499103 ): Hypereutectic aluminum
Intake Manifold (P/N 12496822 ): Single plane
Camshaft Type (P/N 19210723 ): Hydraulic roller
Valve Lift (in ): .509 intake / .528 exhaust
Camshaft Duration (@.050 in ): 222° intake / 230° exhaust
Cylinder Heads (P/N 19417592 ): Fast Burn aluminum; 62cc chambers
Valve Size (in ): 2.000 intake / 1.550 exhaust
Compression Ratio: 9.72:1
Rocker Arms (P/N 19432297 ): Aluminum roller style
Rocker Arm Ratio: 1.5:1
Recommended Fuel: Premium pump
Ignition Timing: 36° Total at 4,000 rpm
Maximum Recommended rpm: 6,000
Balanced: External
Flexplate (P/N 14088765 ): 12.750"

NOTE: Distributor with melonized steel gear MUST be
used with long-blocks and partial engines with steel
camshafts, or engine damage will occur.
