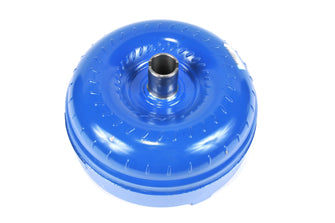

PERFORMANCE SUPERMATIC™ Automatic Transmission Torque Converter 19299801

|
19299801
$1,023.01 $0.00( / )

Build the vehicle of your dreams with the Chevrolet Performance SuperMatic(TM) Torque Converter. Located between the engine flexplate and the transmission, the torque converter transfers rotating power from the engine to a driven load to produce motion in the vehicle. The remanufactured performance grade torque converter features a steel center shaft and a steel housing. Manufactured to meet original equipment specifications, this torque converter has a stall speed range of approximately 3000-3400 RPM and is for use with 60-series transmission behind small-block and big-block engines. No matter what you're driving or what you're building, Chevrolet Performance has a wide range of engines, parts and other accessories to help you fulfill your project-vehicle dream.

Features:
  • Mates 4L60/65/70/75-E (late LS V-8 transmissions) to early Gen I SB/BB
  • Features a dual bolt pattern: 10.75-inch and 11.5-inch
  • Will not fit 153-tooth flexplates
  • Includes converter-to-flexplate bolts and instructions
  • Features a steel center shaft
  • Has a stall speed of 3000-3400 RPM
  • Manufactured to meet original equipment specifications
  • Transfers rotating power from the engine to a driven load to produce motion in the vehicle

Additional Attributes

CPP Compatible Transmission/Engine:4L60/65/70/75-E, 4L75E-HT (late LS" V-8 transmission) mate to early Gen 1 SB/BB (dual bolt pattern - 10.75" and 11.5")"
Fluid Capacity (pt ):10.2
Meets or Exceeds Original Equipment Manufacture Specifications:Yes
Center Hub Length:1.6;40.7
Center Hub Outside Diameter:1.75;44.41
Center Shaft Material:Steel
Color:Blue
Grade Type:Performance
Housing Material:Steel
Lock Up Type:Yes
Maximum Depth:181.29;7.14
Outside Diameter:11;279.4
Pilot Diameter:1.7;43.24
Slotted Center Hub:Yes
Spline Quantity:30
Stall Speed RPM:3400
Add to Wishlist
Categories:

Build the vehicle of your dreams with the Chevrolet Performance SuperMatic(TM) Torque Converter. Located between the engine flexplate and the transmission, the torque converter transfers rotating power from the engine to a driven load to produce motion in the vehicle. The remanufactured performance grade torque converter features a steel center shaft and a steel housing. Manufactured to meet original equipment specifications, this torque converter has a stall speed range of approximately 3000-3400 RPM and is for use with 60-series transmission behind small-block and big-block engines. No matter what you're driving or what you're building, Chevrolet Performance has a wide range of engines, parts and other accessories to help you fulfill your project-vehicle dream.

Features:
  • Mates 4L60/65/70/75-E (late LS V-8 transmissions) to early Gen I SB/BB
  • Features a dual bolt pattern: 10.75-inch and 11.5-inch
  • Will not fit 153-tooth flexplates
  • Includes converter-to-flexplate bolts and instructions
  • Features a steel center shaft
  • Has a stall speed of 3000-3400 RPM
  • Manufactured to meet original equipment specifications
  • Transfers rotating power from the engine to a driven load to produce motion in the vehicle

Additional Attributes

CPP Compatible Transmission/Engine:4L60/65/70/75-E, 4L75E-HT (late LS" V-8 transmission) mate to early Gen 1 SB/BB (dual bolt pattern - 10.75" and 11.5")"
Fluid Capacity (pt ):10.2
Meets or Exceeds Original Equipment Manufacture Specifications:Yes
Center Hub Length:1.6;40.7
Center Hub Outside Diameter:1.75;44.41
Center Shaft Material:Steel
Color:Blue
Grade Type:Performance
Housing Material:Steel
Lock Up Type:Yes
Maximum Depth:181.29;7.14
Outside Diameter:11;279.4
Pilot Diameter:1.7;43.24
Slotted Center Hub:Yes
Spline Quantity:30
Stall Speed RPM:3400
Type:

Automatic Transmission Torque Converter

Vendor:

Chevrolet Performance Parts

SKU:

19299801

Weight:

60.0 lb
